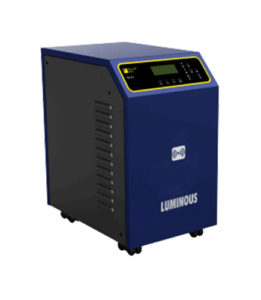

PCU

Brand :

Luminous Solar PCUs with Inbuilt MPPT Charge Controller are specially designed for Solar applications. These 1-Phase & 3-Phase PCUs are having high conversion feature. The DC Power generated from PV array is used to charge connected battery bank and also used to cater load through these PCUs. These PCUs being bi-directional have feature to charge batteries through grid also if Solar is not available.

Features

  • MPPT based PCUs
  • Inbuilt O/P isolation transformer
  • Bi-directional PCU
  • Selectable source priority
  • 32 bit DSP controller
  • MOSFET/IGBT switching element
  • MCB at battery and O/P Compliance to IEC standards

Technical specifications

  • Inbuilt MPPT charge controller with excellent conversion efficiency
  • Bi-Directional PCU with feature for battery charging through grid also
  • LCD display for local monitoring of system parameters, programming the desired settings and fault finding
  • Selectable source priority features to choose source priority as per availability and designed application
  • Advanced communication interface facilitates users to continuously monitor performance of installed system (optional)

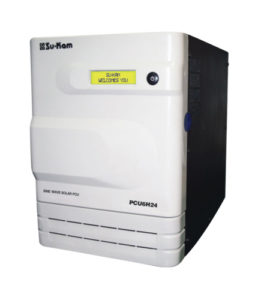

PCU

Brand :

Su-Kam’s Solar Power Conditioning Unit serves both as solar charge controller and inverter. It is a unique hybrid system which can charge batteries through solar and grid. As solar panels make DC electricity, it goes to the Solar PCU which converts DC into AC to power electrical load, and stores the remaining DC electricity in batteries. When there is a deficit of solar power, Solar PCU intelligently runs the connected load on solar energy stored in batteries.

Features

  • PCU is intelligently designed to check the output power of the panels. If the output power is sufficient to charge the battery, then no power is taken from the mains. However, if there is a deficit of solar power, then the remaining will be taken from the mains. For example, if solar panels are making 12 amps and a 150AH battery is connected, then it will take remaining 3amps from grid.

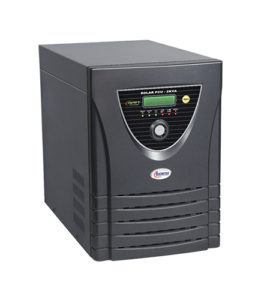

PCU

Brand :

Models :

  • 1KVA/24V
  • 2KVA/36V
  • 2KVA/48V
  • 3KVA/48V

Features

  • MPPT based State-of-the-art Latest Technology for Optimum Performance.
  • Pure Sinewave Output to run all sophisticated appliances.
  • Priority Selection options Solar/Battery/Grid.
  • Solar-Grid Charging sharing. Grid Charging Enable/Disable option.
  • MPPT with Intelli Current Boost Technology.
  • Peak Output Power handling capacity.
  • Solar Power source on priority for charging.
  • Intelli Overload sense with short circuit protection.
  • Battery Deep Discharge Protection.

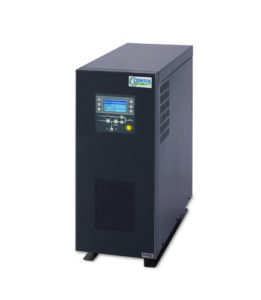

PCU

Brand :

Models :

  • CPCU1KVA48V1P
  • CPCU2KVA48V1P
  • CPCU3KVA48V1P
  • CPCU4KVA96V1P
  • CPCU5KVA120V1P
  • CPCU6KVA144V1P
  • CPCU8KVA180V1P
  • CPCU10KVA180V1P

Features

  • › Hybrid Design (Grid & Solar Charging)
  • › Inbuilt MPPT (Maximum Power Point Tracking) charge controller
  • › High Efficiency Design
  • › Superior MPPT Algorithm › Solar priority / Grid Priority Logic
  • › Electronic Protection › Microcontroller based intelligent design
  • › Auto restart facility
  • › LCD / LED Display
  • › Compact / Rugged design
  • › Remote monitoring facility (Optional)
  • › Multiple MPPT Design ** (Only in Three Phase Solar PCU)
  • › Output transformer for reliability

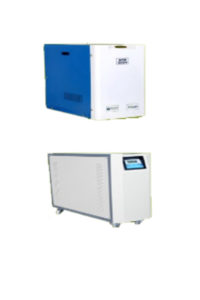

PCU

Models :

  • 850 VA TO 15 KVA

Brand :
